High Quality Cordierite Mullite Ceramic Honeycomb Filter Plates 25,40,50,60 Cell Honeycomb Ceramic Regenerator For Rto Rco

Duży Obraz : High Quality Cordierite Mullite Ceramic Honeycomb Filter Plates 25,40,50,60 Cell Honeycomb Ceramic Regenerator For Rto Rco

Szczegóły Produktu:

Miejsce pochodzenia:	Henan, Chiny
Nazwa handlowa:	RONGSHENG
Orzecznictwo:	ISO9001

Kontakt

High Quality Cordierite Mullite Ceramic Honeycomb Filter Plates 25,40,50,60 Cell Honeycomb Ceramic Regenerator For Rto Rco

Opis

Pochodzenie:	Xinmi	Aplikacja:	Podszewka Tundish
Moduł pęknięcia:	5-12MPA	Typ:	Wysokie tlenek glinu Castable
Maksymalna temperatura usługi:	1300 ℃	Kształt:	Moc
Czas leczenia:	24 godziny	Koszt:	Niski
Gęstość luzem:	2,5-3,0 g/cm3	Temperatura usługi:	1000 ℃ -1800 ℃
Produkt:	Odporny na kwas	Siła ściskająca:	≥80 MPa
Ustawienie początkowe:	＞ 1 godzina	Surowiec:	Spinel Baxite
MGO:	10%
Podkreślić:	cordierite mullite ceramic honeycomb filter plates , honeycomb ceramic regenerator for RTO RCO , refractory castable ceramic filter plates

Product Description

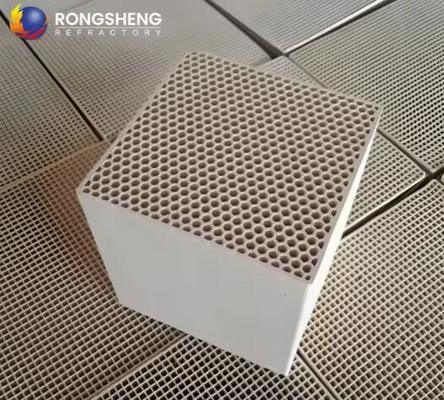

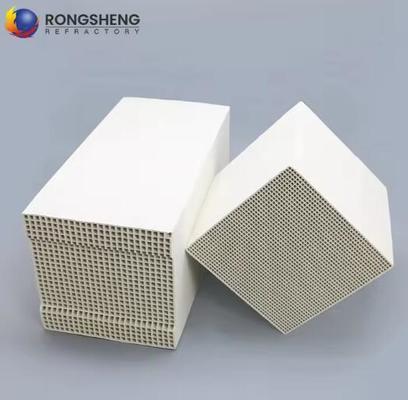

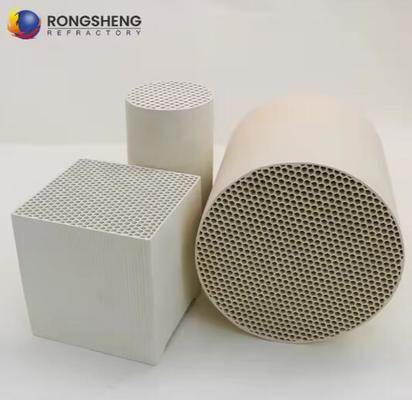

Mullite-Cordierite Honeycomb Ceramic For RTO/RCO System The honeycomb ceramic as heat transfer media is the key part for heat storing HTAC(High Temperature Air Combustion)technology,which has low heat expansion coefficient,large surface area,good heat stability and anti-corrosion.It has got wide application in many industrial productions(especiallu it was widely application in RTO/RCO system by domestic market and global market).Our company has produced more than 10 types of honeycomb ceramic heat storage substrate accoring to the USA and european series of honeycomb ceramic materials. RTO/RCO Honeycomb Ceramics Material: high alumina procelain,loose cordierite,mullite-cordierite,alumina procelain,corundum/Mullite etc. RTO/RCO Honeycomb Ceramics Features RTO technology and RCO technology are VOCs (volatile organic compounds) treatment technologies, which are mature technologies with wide application, good treatment effect, stable operation and low cost.

Specification

RTO/RCO honeycomb ceramics Main Size:

LWG(mm)	150x 150 x 300(150)
Number of Cell	25x25=625	40x40= 1600	43x43=1849	50x50=2500	60x60=3600
Width of Cell(mm)	4.95	3.02	2.81	2.38	1.98
Thickness of inner wall(mm)	1.0	0.7	0.65	0.6	0.5
Surface Area(m2/m3)	577	886	950	1084	1294
Opening Ratio(%)	68	65	65	63	63

RTO/RCO honeycomb ceramics Physical Properties:

Item	Aluminum Porceian-cordierite	Dense aluminum porcelain	Cordierite	Mullite-Cordierite	Mullite	Enamel
Density(g/cm3)	2.0~2.3	2.4~2.6	1.6~1.9	1.7~2.0	2.0~2.4	1.7~2.0
Bulk density (g/cm3)	0.65~0.8	0.65~0.8	0.6~0.7	0.65~0.75	0.65~0.8	0.65~0.75
Thermal Expansion Coefficient (X10-6°C-1) (RT-800°C)	≤6	≤6	≤3	≤3.5	≤5.5	≤6.5
Specific heat capacity (J/Kg.k)	950~1150	1000~1200	900~1100	900~1100	1000~1150	900~1100
Thermal Conductivity (w/m.k)(20-1000°C)	1.5~2.0	1.5~2.0	1.2~1.8	1.4~1.9	1.5~2.0	1.4~1.9
Thermal shock resistance Max Temperature(℃)	≥400	≥300	≥450	≥350	≥350	≥300
Advised Max Temperature(℃)	1250	1350	1150	1250	1450	1200
Water Absorption Rate(%)	≤20	≤5	≤22	≤20	≤20	≤10

RTO/RCO honeycomb ceramics Chemical composition:

Item	Aluminum Porceian-cordierite	Dense aluminum porcelain	Cordierite	Mullite-Cordierite	Mullite	Enamel
SiO2	25~35	25~35	45~55	40~50	25~35	68~72
Al2O3	55~65	55~65	28~38	55~65	55~65	22~26
MgO	2~4	2~4	11~14	5~9	≤2	≤0.5
Fe203+TiO2	1~4	1~4	1~3	1~3	1~4	1~3
Others	≤5	≤5	≤5	≤5	≤5	≤5

Product Application

RTO/RCO Honeycomb Ceramics Application Typical Application: high temperature heat accumulation and exchange in industrial waste gas treatment for metallurgical ,chemical and construction material idustries.

Packing & Delivery

Wooden pallets with plastic film or according to your request.1. Strong packing protects the goods from any possible damage during transit. 2. Solid packing and overall stuffing prevent the cases from vibration and jarring. 3. Necessary precaution is taken to protect goods from pilferage or rain. 4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.Delivery Detail:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.

Company Profile

RongSheng Refractories Co., Ltd. is located in Henan, China. Our company has professional scientific and technical personnel and production team, and we have our own fully automated factories. For more than 30 years, we have focused on the development and innovation of refractory materials and high-temperature furnace technology, and strive to provide customers with comprehensive, personalized and cost-effective services with high-quality products. Our products are widely used in electric power, metallurgy, petrochemical and other fields, and are exported to more than 120 countries and regions in the world such as Europe, America, Oceania, Southeast Asia, and the Middle East. RongSheng Refractories Co., Ltd. is a first-class supplier of refractory materials, we can provide you with the most advantageous quotations and products. Looking forward to be your partner!
